Transcranial direct current stimulation combined with physical or cognitive training in people with Parkinson’s disease: a systematic review

Journal of NeuroEngineering and Rehabilitation volume 17, Article number: 74 (2020) Cite this article

Abstract

Background

Pharmacologic therapy is the primary treatment used to manage Parkinson’s disease (PD) symptoms. However, it becomes less effective with time and some symptoms do not respond to medication. Complementary interventions are therefore required for PD. Recent studies have implemented transcranial direct current stimulation (tDCS) in combination with other modalities of interventions, such as physical and cognitive training. Although the combination of tDCS with physical and cognitive training seems promising, the existing studies present mixed results. Therefore, a systematic review of the literature is necessary.

Aims

This systematic review aims to (i) assess the clinical effects of tDCS when applied in combination with physical or cognitive therapies in people with PD and; (ii) analyze how specific details of the intervention protocols may relate to findings.

Methods

The search strategy detailed the technique of stimulation, population and combined interventions (i.e. cognitive and/or physical training). Only controlled studies were included.

Results

Seventeen of an initial yield of 408 studies satisfied the criteria. Studies involved small sample sizes. tDCS protocols and characteristics of combined interventions varied. The reviewed studies suggest that synergistic effects may be obtained for cognition, upper limb function, gait/mobility and posture when tDCS is combined with cognitive and/or motor interventions in PD.

Conclusion

The reported results encourage further research to better understand the therapeutic utility of tDCS and to inform optimal clinical use in PD. Future studies in this field should focus on determining optimal stimulation parameters and intervention characteristics for maximal benefits in people with PD.

Introduction

Parkinson’s disease (PD) is a neurodegenerative disorder mainly characterized by the progressive loss of dopaminergic neurons in the substantia nigra pars compacta. This leads to excessive GABAergic (inhibitory) signaling from the output nuclei of the basal ganglia to the thalamus and other subcortical structures [1, 2]. In turn, the thalamus sends reduced excitatory signaling to many cortical areas, leading to a broad cortical dysfunction in PD [1, 2], which includes sensorimotor and cognitive areas. PD is traditionally described as a movement disorder, including symptoms such as bradykinesia, resting tremor, rigidity, postural instability and gait impairments [3, 4]. Mood disorders (e.g. anxiety and depressive symptoms) and cognitive impairments (e.g. executive function, memory, etc.) are also common and disabling in PD [5, 6]. Dopaminergic medication is the primary treatment used to manage PD symptoms. However, it becomes less effective and side effects emerge with time, such as dyskinesia, motor fluctuations and hallucination [7, 8]. Additionally, cognitive impairments and postural instability do not respond to dopaminergic medication [9, 10]. Complementary interventions are therefore required for PD.

A growing body of evidence suggests that transcranial direct current stimulation (tDCS), a low-cost method of non-invasive brain stimulation, could potentially become a clinical tool for PD in the near future [11,12,13,14]. tDCS directs, through scalp electrodes, a constant low amplitude electric current (generally between 1 and 2 mA), which has been shown to modulate excitability in both cortical [15] and subcortical brain areas [16, 17]. Anodal tDCS leads to increased neuronal excitability whereas cathodal tDCS leads to reduced neuronal excitability [15, 18]. tDCS can also modulate oxygen supply to cortical and subcortical areas [19] and neuronal synapsis strength [20], triggering plasticity processes. Of particular interest to its application in PD, anodal tDCS increases extracellular dopamine levels in the striatum [21] and inhibits GABAergic neurons [22, 23]. Recent systematic reviews confirmed that, as a stand-alone intervention, tDCS promotes benefits on motor function and to a lesser extent on cognition in people with PD [12, 24].

Taking advantage of tDCS portability, researchers have implemented tDCS in combination with other modalities of complementary interventions, such as physical (i.e. exercise, physiotherapy, etc.) [25] and cognitive training [26, 27]. The idea is that such combinations would promote greater, synergistic effects than the interventions applied separately [28, 29]. In this context, tDCS can be applied concurrently or as a priming technique. It has been argued that such applications may reinforce long-term potentiation-like processes [30], promoting greater retention of benefits from combined therapy [31]. Although the combination of tDCS with physical and cognitive training seems promising, the existing studies present mixed results. Therefore, a systematic review of the literature is necessary. This systematic review assessed: (i) the clinical effects of tDCS when applied in combination with physical or cognitive therapies in people with PD and; (ii) how specific details of the intervention protocols may relate to findings.

Methods

Search strategy

Two of the authors (VSB and NRC) created a search strategy, which was approved by all authors, to identify all potentially relevant studies. Table 1 shows the terms and synonyms used to search papers in the databases in the title, abstract or keywords. The search strategy included three fields (connected with “AND”) with independent search terms. Terms in the same field were connected with the conjunction “OR”. The first search field focused on the population (i.e. Parkinson’s disease). The second search field comprised types of non-pharmacologic treatments (i.e. motor/physical therapies, rehabilitation, cognitive therapies, and exercises). The third search field focused on tDCS. The search terms were combined and explored with the medical subject headings (MeSH) in different databases (Pubmed, Scopus, Embase, Web of Science and PsycNET). Manuscripts identified through databases search were downloaded to a reference manager software where duplicates were excluded. Two authors (VSB and NRC) performed the initial screen by reviewing the titles and abstracts and when necessary a third author (RV) made the final decision. However, in cases that the eligibility of the study was not clear by the information provided in the title and abstract, a review of the full text was performed. Additional sourced articles were acquired by screening reference lists.

Table 1 Search terms used in each search field
Full size table

Inclusion and exclusion criteria

Articles were included if they investigated the effects of tDCS combined with physical and/or cognitive therapies on motor, cognitive, neuropsychiatric, quality of life, and others outcomes in people with PD (only human participants). Only articles written in English were considered for the review. Any open-label studies, review papers, book chapters, commentaries, study protocols, or clinical trials registers were excluded. Articles that analyzed the effects of tDCS as a stand-alone intervention and those involving other techniques of transcranial stimulation (e.g., transcranial alternating current stimulation, transcranial magnetic stimulation, etc.) were also excluded to avoid confusion with the reviewed topic.

Data extraction

Data were extracted by five reviewers (VSB, NRC, PNS, DOS, LKBFD) and synthesized into a table format. Data entry was confirmed by another reviewer (RV). Data included authors, year of publication, groups and participants characteristics (number of participants, score of Unified Parkinson’s Disease Rating Scale motor section (UPDRS III), years since the diagnosis, levodopa equivalent daily dosage), study design, tDCS protocol (current stimulation, sham characteristics, electrode placement, stimulation intensity and duration, electrode size and number of sessions), therapy protocol (type, characteristics, volume, intensity, duration, moment and number of sessions), assessment (period; medication state and outcomes), main findings and occurrence of adverse effects of tDCS.

Results

Study selection

The flow chart with information regarding the different phases of the search and screening process is shown in Fig. 1. The search strategy yielded 408 studies from publication databases. One hundred and sixty-four duplicates were removed. After further review of title and abstract, 20 articles were included by consensus of the reviewers. After full text review, three studies were excluded, one because it did not involve people with PD [32], and two because they did not have control group or sham condition [26, 27]. Table 2 shows the extracted data regarding the methodological aspects of the studies included in the present systematic review.

Fig. 1
figure 1

Flowchart with screening process following the PRISMA guidelines

Full size image
Table 2 Methodological characteristics of the studies included in the systematic review following the determination of the PICOS terms
Full size table

Participants

The sample size varied from 1 to 53 participants, with a mean age between 56.67 and 79 years. The mean of the UPDRS motor section (part III) score ranged from 10.9 to 47.7. The disease duration ranged from 4.4 to 9.4 years and Levodopa Equivalent Dose (LED) ranged from 251.56 to 912 mg/day.

Study design

Seven studies had cross-over design [25, 28, 34, 37, 39,40,41] and ten were controlled trials with parallel arms. Three studies did not mention information regarding how or if experiments were blinded [37, 40, 42], three studies consisted of single-blind experiments [28, 34, 36] and eleven studies consisted of double-blind experiments. It is worth mentioning that all the included studies randomly assigned participants into groups/conditions.

tDCS protocol

Polarity, current intensity, and number of sessions

Fifteen studies included anodal tDCS protocols targeting a single brain region [28, 29, 31, 33,34,35,36,37,38,39,40, 42,43,44,45] whereas two studies stimulated both hemispheres [25, 41]. Thirteen studies used 2 mA [25, 29, 31, 33, 35,36,37,38,39, 41, 43,44,45], one study used 1.5 mA [42] and three studies used 1 mA [28, 34, 40]. Seven studies used a single session of tDCS protocols [25, 28, 34, 36, 37, 39, 41] and ten studies applied multiple sessions of tDCS protocols, varying between 2 and 16 sessions.

Electrode size and placement

Fifteen studies used 35–40 cm2 electrodes, one study used 15 cm2 electrodes [36] and one study used 80 cm2 electrodes [39]. Anodal electrode was placed over the dorsolateral prefrontal cortex (DLPFC) in six studies [29, 33, 36, 38, 42, 43], frontal polar area in one study [40] and over motor areas (i.e., primary motor cortex (M1), premotor cortex (PMC) and supplementary motor area (SMA)) in ten studies [25, 28, 31, 34, 35, 37, 39, 41, 44, 45]. The reference electrode (cathode) was placed over the contralateral supraorbital region in twelve studies [28, 29, 31, 33,34,35, 37, 38, 43,44,45], over the ipsilateral supraorbital region in one study [42], over the frontal orbit in one study [39], over the inion in two studies [25, 41] and over the occipital area in one study [40].

Duration of the stimulation (active and sham)

Stimulation time for active protocols varied between 7.5 and 30 min, with nine studies using 20-min sessions [28, 33, 34, 36,37,38,39, 42, 44]. Most of the studies used sham protocols in which the current was delivered during the initial period of the session (8 to 60 s) and then turned off; ten studies reported that the current was delivered during the initial 30 s [25, 28, 31, 35,36,37,38,39,40,41]. Two studies reported that the current was turned on once again for the last 10 s of the session [29, 43].

Combined interventions

tDCS protocols were combined with motor interventions in thirteen studies [25, 28, 29, 31, 34,35,36,37,38,39,40,41, 45], cognitive interventions in three studies [33, 42, 43] and motor-cognitive intervention in one study [44].

Seven studies combined tDCS protocols with acute interventions [25, 28, 34, 36, 37, 39, 41] and in all of them tDCS was applied concurrently (not as a priming technique). Ten studies combined tDCS protocols with chronic interventions [29, 31, 33, 35, 38, 40, 42,43,44,45]. Five of the chronic studies applied tDCS as a priming technique [31, 35, 38, 42, 45] while five studies applied tDCS during the combined intervention [29, 33, 40, 43, 44]. Chronic interventions varied between 3 and 5 sessions per week (between 5 and 16 sessions in total), with total duration (not only tDCS) between 15 and 60 min [29, 31, 33, 35, 38, 40, 42,43,44,45].

Assessment characteristics

Fifteen studies carried out pre- and post-assessments [25, 29, 31, 33,34,35, 37, 38, 41, 42, 44, 45] and seven chronic studies also included follow-up assessments after 4 [31, 35] or 12 weeks [29, 38, 42,43,44]. Twelve studies assessed patients while ON medication [25, 28, 29, 34,35,36,37, 41,42,43,44,45], two studies while OFF medication [39, 40], one study assessed patients in both ON and OFF states [31] and two studies did not report medication state [33, 38]. Although the methods used for assessment varied in the included studies, a few tests were repeated. The Timed Up and Go test (TUG) was used in six studies [25, 29, 31, 35, 36, 44], the UPDRS motor section was used in seven studies [29, 33, 35, 39, 40, 43, 45], Parkinson’s Disease Quality of Life Questionnaire-39 (PDQ-39) was used in four studies [29, 35, 42, 43] and Mini Mental State Examination (MMSE) and Parkinson’s Disease – Cognitive Rating Scale (PD-CRS) were used in three studies [29, 42, 43].

Effects of tDCS

Table 3 presents the main results regarding the effects of tDCS when combined with motor and/or cognitive interventions. Figure 2 summarizes the main findings of the 17 included studies separately for gait/mobility, postural control, upper limb movements, other motor symptoms, cognition, neuropsychiatric symptoms and others (including quality of life, fatigue and sleep disorders).

Table 3 Main results of the reviewed studies
Full size table

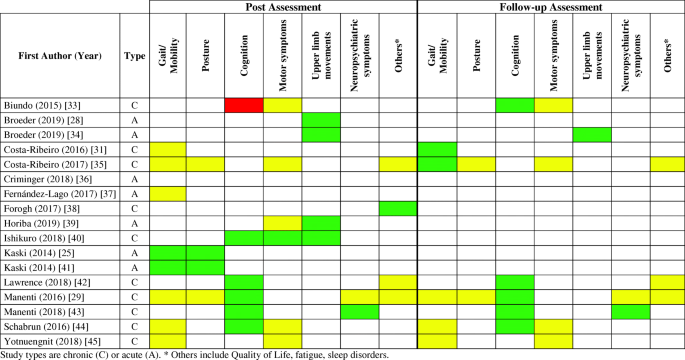

Fig. 2
figure 2

Synthesis of results in relation to the additional effect of tDCS. Green = Additional effect of combined intervention; Yellow = No additional effect of the combined intervention; Red = Negative effect of the combined intervention; White = not assessed in the reviewed studies; A = Acute (Considered the immediate effect of a single session); C = Chronic (Considered the effect of repeated sessions). * Others include Quality of Life, fatigue, sleep disorders

Full size image

Gait and mobility

Two out of eight studies reported synergistic effects on gait and mobility at post-test, including increases in gait speed and stride length and improvement in the turn phase of TUG [25, 41]. The other six studies assessing gait reported similar findings for both active and sham tDCS at post-test [29, 31, 35, 37, 44, 45]. Two of out five studies observed synergistic effects on gait and mobility at follow-up assessment [31, 35]. The other three studies assessing gait and mobility reported similar findings for both active and sham tDCS at follow-up test [29, 44, 45].

Postural control

Two out of four studies reported synergistic effects on postural control at post-test, including reduced time taken to recover balance following retropulsion and increased trunk peak velocity during tango [25, 41]. The other two studies assessing postural control reported similar findings for both active and sham tDCS at post-test and follow-up test [29, 35].

Upper limb movements and motor symptoms

The four studies assessing upper limb function observed synergistic effects. Broeder et al. (2019) [28] observed that active tDCS reduced the number of upper limb freezing episodes during writing. Synergistic effects were demonstrated for upper limb movement at post-test and follow-up [34, 39, 40]. Five out of six studies assessing motor symptoms and/or disease severity throughout clinical test reported similar findings for both active and sham tDCS at post-test and follow-up [33, 35, 39, 44, 45]. Only one study reported synergistic effects on disease severity at the post-test [40].

Cognition

Five out of six studies reported synergistic effects on cognition at post-test, including increased number of correct responses during the TUG with dual task, improved executive function, attention, working memory, verbal fluency and the total and frontal-subcortical scores on PD-CRS [29, 40, 42,43,44]. The benefits offered by the combined interventions on cognition were maintained at the follow-up test. On the other hand, Biundo et al. (2015) [33] observed negative effects of tDCS on cognition when combined with cognitive training. These authors reported decrement performance for the active tDCS compared to the sham group in attention/executive skills at post-test; additionally, only the sham group improved delayed memory index at post-test. Interestingly, Biundo et al. (2015) [33] observed a trend for better performance in the active tDCS group compared with the sham group in the story learning test at follow-up.

Neuropsychiatric symptoms, fatigue, sleep disorders and quality of life

Neuropsychiatric symptoms (i.e. depression [29]), sleep disorders [38] and/or quality of life [29, 35, 42] were less frequently assessed. Synergistic effects on neuropsychiatric symptoms (at post-test and follow-up) [43] and fatigue (at post-test) [38] were reported by only one study.

Discussion

This review examined 17 studies that assessed the effects of tDCS when applied in combination with physical or cognitive therapies in people with PD. In summary, the included studies had appropriate design (i.e. cross-over or parallel arms) and control (i.e. sham tDCS). However, most included studies involved small sample sizes (n < 24), which makes the results difficult to generalize to the full range of people with PD. Also, tDCS protocols varied for stimulation time (from 7.5 and 30 min) and number of sessions (from 1 to 16 sessions), making comparisons and definitive conclusion regarding potential synergistic effects challenging. The most consistent synergistic effects were reported for cognition [29, 33, 40, 42,43,44] and upper limb function [28, 34, 39, 40]. Although findings related to other aspects of PD were inconsistent, synergistic effects were also reported for gait and postural control [25, 31, 35, 41]. The large heterogeneity in stimulation parameters and combined interventions may explain the large variation of findings that have been reported by the reviewed studies. In addition, it is not possible to determine if clinical and demographic characteristics of the studied individuals influenced the observed variability on results.

Methodological aspects

The included studies were consistent with regards to tDCS polarity and site of stimulation. In all studies, the anode electrode was placed in order to target brain area related to motor or cognitive functions. Studies aiming to improve cognition targeted DLPFC while those aiming to improve motor aspects of PD targeted M1, SMA and/or PMC. As PD is characterized by reduced dopaminergic signaling by the substantia nigra pars compacta and the consequent increased GABAergic signaling from the basal ganglia to other encephalic regions, it makes sense to use anodal tDCS for rehabilitation in PD. Anodal tDCS has been shown to increase extracellular dopamine levels in the striatum [21] and inhibit GABAergic neurons [22, 23]. However, it is somewhat surprising that only one of the reviewed studies used cathodal tDCS [40]. Ishikuro et al. [40] applied the cathodal tDCS over the occipital area. A growing body of evidence supports the hypothesis that the functional interhemispheric imbalance contributes to the clinical motor deficits in PD. For example, PD is associated with asymmetry in M1 excitability [47, 48], with the more-affected hemisphere showing decreased excitability in comparison to the less-affected one. Thus, cathodal tDCS applied to the less-affected hemisphere (as well as anodal tDCS on the more-affected hemisphere) may also benefit patients with PD by leading to a more balanced interhemispheric activity. Cosentino et al. (2017) [49] observed that anodal tDCS of the more-affected M1 and cathodal tDCS of the less-affected M1 were able to induce polarity-specific changes in cortical excitability, leading to a more balanced interhemispheric excitability. These authors also observed that motor performances of both hands improved after both stimulation protocols [49]. Additional studies investigating the effects of cathodal tDCS in PD is required, especially when applied in combination with physical or cognitive interventions.

Another consistent aspect of the intervention protocols of the reviewed studies refers to current intensity. Thirteen studies used 2 mA and none compared the effects of different tDCS intensities when applied in combination with other interventions. The choice for 2 mA may be justified by the fact that some neurophysiological studies have shown greater increase in cortical excitability after 2 mA tDCS when compared to 1 mA [50, 51]. Also, longer lasting effects have been associated with greater current intensities [15]. However, other studies have found no differences in cortical excitability when comparing 2 mA and 1 mA [52,53,54]. Further research is required to understand if current intensity is a moderator factor when tDCS is applied in combination with other complementary interventions. Tolerability and safety of current intensities greater than 2 mA are still to be investigated in this kind of interventions in PD.

Reported findings

Consistent synergistic effects were reported for cognition when tDCS was applied in combination with other modalities of complementary interventions. All six studies reporting synergistic effects on cognition used multiple sessions (4 to 16 sessions). Current intensity included 1.0, 1.5 or 2.0 mA. The reported synergistic effects were consistent with the area targeted by tDCS. Four studies targeted the DLPFC and one study target the frontal polar area, cortical regions known to be involved in executive function and working memory [29, 33, 42]. Interestingly, one study that stimulated M1 observed increased number of correct responses provided while performing the TUG test under dual-task condition (i.e., concomitant cognitive task) [44]. Authors argued that individuals with PD improved their ability to dual task when walking due to improved movement automaticity after the intervention. It is possible that anodal tDCS on M1 improved the efficiency of the direct locomotor pathway (i.e. neuronal commands are transmitted directly from M1 to the spinal cord), leading to a more automatic control [55, 56]. Then, the attentional and executive resources previously required for the control of movements could be reallocated to the performance of the concomitant cognitive task, which led to better performance of such task.

Upper limb function and motor symptoms (as assessed by UPDRS-III) respond differently to combined interventions involving tDCS. Consistent synergistic effects were reported for upper limb function [28, 34, 39, 40]. Since methods of the studies reporting the synergistic effects on upper limb function varied, it is difficult to establish associations with results. Overall, synergistic effects were observed after a single or multiple sessions, with tDCS targeting DLPFC or M1. On the other hand, motor symptoms as assessed by UPDRS-III seem to not benefit from the addition of tDCS on physical/cognitive interventions. Only one (out of five) study observed synergistic effects on motor symptoms [40]. UPDRS-III may miss subtle motor improvements and, therefore, we suggest future studies to use more objective assessments of clinical motor symptoms (e.g., inertial sensors, electromyography, etc.).

Although inconsistent, synergistic effects were also reported for gait and mobility when tDCS was combined with other complementary interventions in people with PD. Two out of eight studies reported synergistic effects of tDCS on gait and mobility at post-test [25, 41]. These two studies involved immediate physical interventions (i.e. gait training and tango dance) with stimulation targeting bilateral M1 and PMC. Studies targeting one cortical area (i.e. unilateral M1 or prefrontal cortex - PFC) observed similar results for both active and sham tDCS. Given the multiple cortical regions involved in gait and the bilateral representation of these regions [55, 57], it is possible that bilateral stimulation of multiple cortical areas is required to provide synergistic immediate effects (i.e. at post-test) to gait in people with PD. Also, two studies observed synergistic effects on gait and mobility at follow-up assessment [31, 35]. Costa-Ribeiro et al. [31, 35] observed that tDCS (applied before the physical intervention) prolonged the effects of cued gait training on functional mobility and that this benefit is independent of dopaminergic medication. The synergistic effects on mobility at follow-up assessment could be explained by the changes in cortical excitability. While both sham and active tDCS groups increased cortical excitability and improved mobility at post assessment, only the gait training plus active tDCS group maintained the benefits at the follow-up assessment [31]. Thus, there seems to be a positive relationship between increased cortical excitability and improvement in mobility in patients with PD [11, 31].

Synergistic effects on postural control were also reported when tDCS was combined with physical interventions in people with PD. Four studies assessed postural control, but only two studies presented synergistic effects of active tDCS combined with gait training and tango dance [25, 41]. These studies involved a single session of intervention and stimulated motor areas (i.e. M1 and PMC) bilaterally. The other two studies that reported no synergistic effects at the post and follow-up assessments involved 10 sessions of physical interventions (i.e. physical therapy and cued gait training) and stimulated M1 and PFC unilaterally (contralateral to the most affected body side). Postural control involves several cortical areas (i.e. PFC, PMC, SMA, M1, and primary sensory cortex – S1) in both hemispheres and the cerebellum [2, 58]. Therefore, it is possible that bilateral stimulation of multiple areas is necessary for the synergistic immediate effects to postural control in patients with PD. Besides, it should be noted that the synergistic effects were evidenced by studies that performed the stimulation during the physical intervention. Physical training has been shown to normalize M1 excitability in people with PD [59], while tDCS may decrease the threshold for these changes to occur, facilitating long-lasting effects [11, 25].

Limitations apply while interpreting the current findings. This review is limited by the small number of papers identified (n = 17) in the literature and the varied protocols tested in the included studies. This limits our interpretations and makes definitive conclusion regarding potential synergistic effects challenging. Additionally, although we acknowledge the contributions of open-label studies to the developments in this emerging area of research, we opted to exclude open-label studies from our review due to the inherent methodological flaws of such design. Despite these limitations, this review provides a useful synthesis of the existing studies on the combination of tDCS with physical/cognitive interventions in PD, which may guide the development of the field towards a more robust body of evidence.

Conclusions

Although the reviewed studies used appropriate design and control, they involved a limited number of participants, which may imply underpowered analysis. Thus, large-scale studies are needed. Despite this major flaw, the reported results of tDCS interventions combined with cognitive and/or motor interventions encourage further research to better understand its therapeutic utility and to inform optimal clinical use in PD. The reviewed studies suggest that synergistic effects may be obtained for cognition, upper limb function gait/mobility and posture when tDCS is combined with cognitive and/or motor interventions in PD. Future studies in this field should focus on determining optimal stimulation parameters and intervention characteristics for maximal benefits in people with PD. Research on identifying potential predictors of response to tDCS-based interventions (i.e. tDCS combined with cognitive and/or motor interventions) in people with PD should also be conducted.

Availability of data and materials

All primary data were extracted from the referenced sources. The datasets used during the current study are available from the corresponding author on reasonable request.

Abbreviations

PD:

Parkinson’s disease

tDCS:

Transcranial direct current stimulation

MeSH:

Medical subject headings

UPDRS:

Unified Parkinson’s Disease Rating Scale

LED:

Levodopa Equivalent Dose

DLPFC:

Dorsolateral prefrontal cortex

M1:

Primary motor cortex

PMC:

Premotor cortex

SMA:

Supplementary motor area

PFC:

Prefrontal cortex

S1:

Primary sensory cortex

TUG:

Timed Up and Go test

PDQ-39:

Parkinson’s Disease Quality of Life Questionnaire-39

MMSE:

Mini Mental State Examination

PD-CRS:

Parkinson’s Disease – Cognitive Rating Scale

mA:

Milliamp

NR:

Not reported

TMT:

Trial Making Test

HY:

Hoehn and Yahr Scale

BDI-II:

Beck Depression Inventory-II

RBDSQ:

REM Sleep Behavior Disorders Screening Questionnaire

SICI:

Short intracortical inhibition

MEP:

Motor evoked potential

ICF:

Intracortical facilitation

UL-MT:

Upper limb motor task

BBS:

Berg Balance Scale

EEG:

Electroencephalography

DTC:

Dual-task cost

TMS:

Transcranial magnetic stimulation

EMG:

Electromyography

CT:

Cognitive training

CG:

Control group

Hmax:

Maximum H-reflex amplitude

Mmax:

Maximum M amplitude

CSP:

Cortical silent period

RMT:

Resting motor threshold

STEF:

Simple test for evaluating hand function

FAB:

Frontal Assessment Battery

BIS-11:

Barratt Impulsivity Scale

IPNP:

International Picture Naming Project
